- Stem Lengths: 21 /2″, 4″, 6″, 9″, 12″, 15″, 18″ and 24″ (available up to 120″).
- Stem Diameter: .250″ standard up to 42″stem and .375″standard over 42″ stem. Connection: 1 /2″ NPT.
- Construction: 304 stainless steel external parts. Welded construction. Corrosion resistant to most chemicals.
- Hermetic seal: Per ASME B40.3 dustproof and leakproof.
- Dial: Glow dial is luminescent polycarbonate.
- Pointer and Clips: Pointer: Aluminum alloy with highly reflective material.
- Clips: 304SS with highly reflective material.
- Lens: Glass. Bimetal Coil: Helix coil is silicone coated on ranges below 500°F for vibration dampening and to optimize heat transfer and response time.
- Accuracy: ±1% full span per ASME B40.3 Grade A. Adjustment of the angle between case and stem may affect accuracy up to 0.5% of span (ASME B40.3).
Loading...
UT500
CATEGORY: TEMPERATURE PRODUCTS
Model: UT500

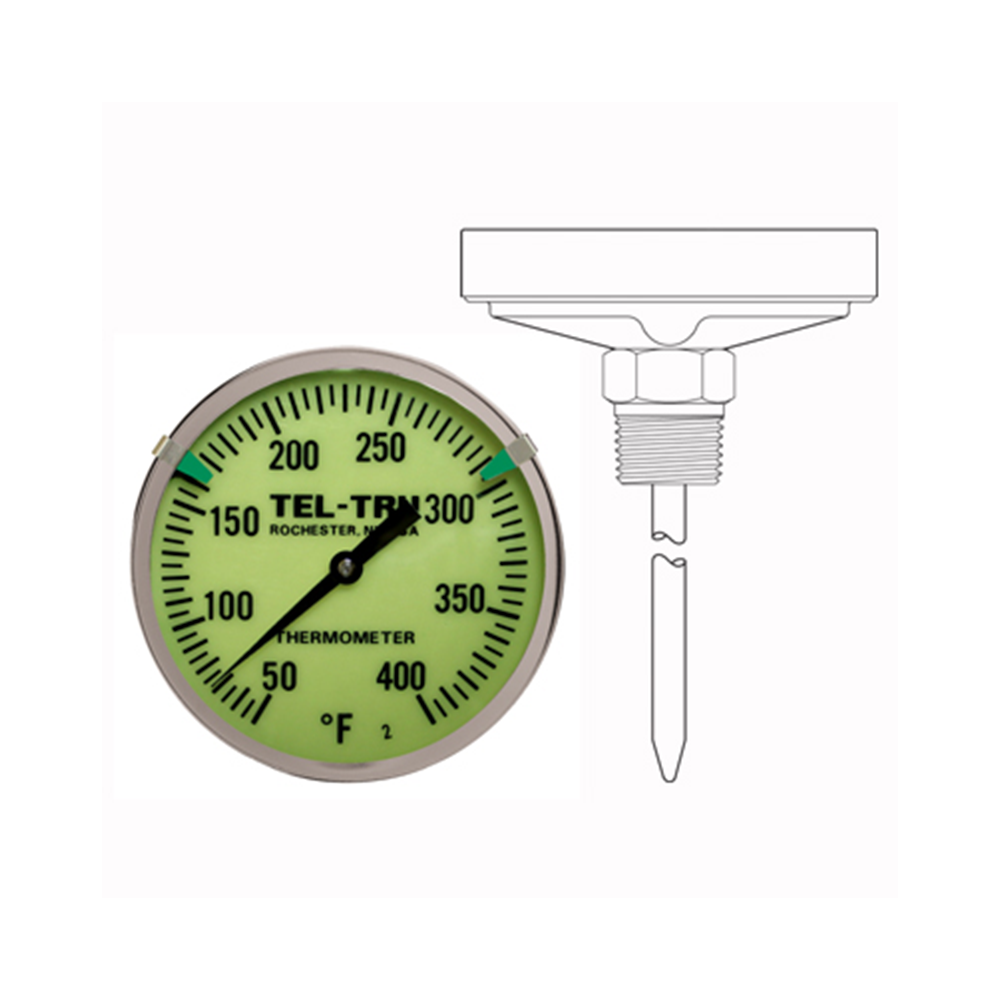

Back Connect Glow Dial with Reflective Pointer and Clips
