APPLICATION:

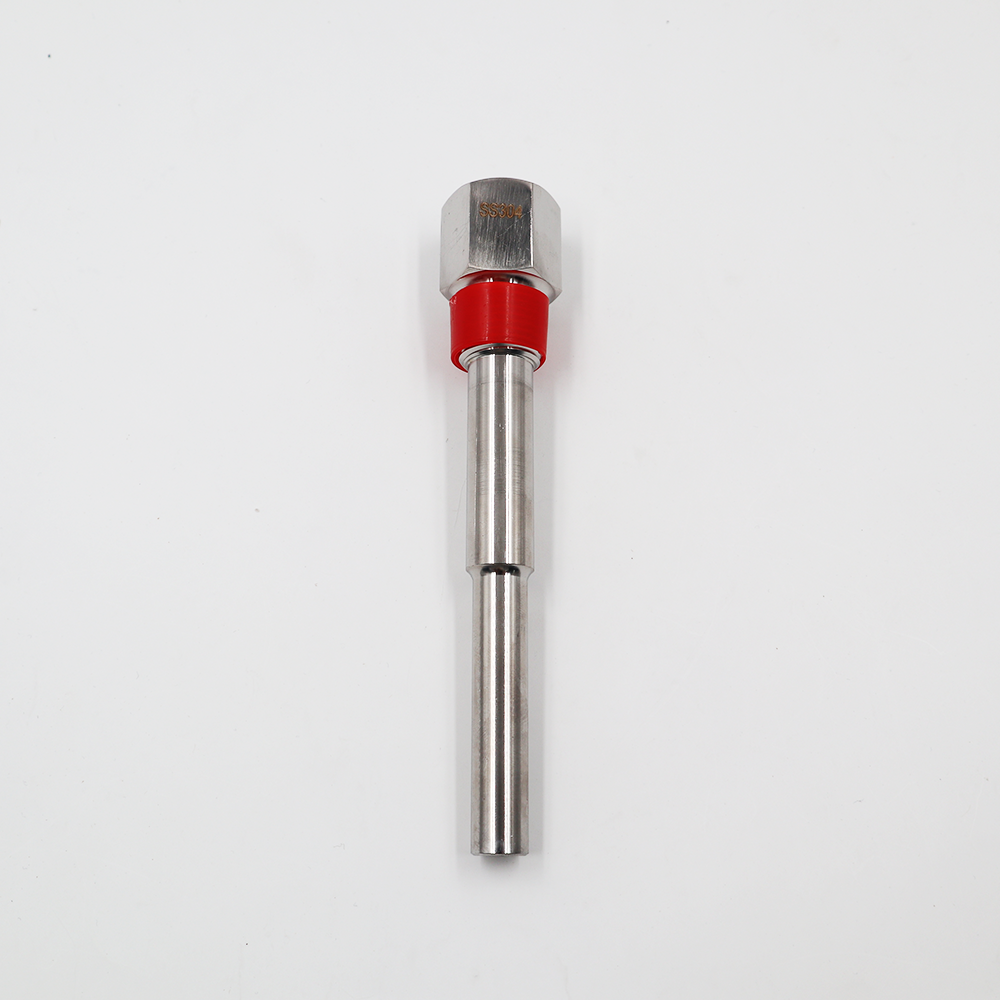

Standard length, 1/4″ stem diameter, bimetal thermometers; #20 gauge thermocouple elements ; unarmored liquid-in-glass test thermometers ; other temperature sensing elementshaving 0.252″ maximum diameter. Standard thermowell is stepped to 1/2″ OD except 2-1/2″ insertion. Please specify if straight shank is required.

PROCESS CONNECTION SIZE:

1/2″, 3/4″, and 1″ NPT are standard. Other thread sizes available upon request.

MATERIALS:

Brass (ASTM B-16); Carbon Steel (C-1018); 304SS; 316SS; Monel. Other special materials available upon request.

CAP & CHAIN:

Available upon request for keeping thermowell bore clean when not in use. (Not shown)
