- Stem Lengths : 21 /2″, 4″, 6″, 9″, 12″, 15″, 18″ and 24″ (available up to 120″).
- Stem Diameter : .250″ standard up to 42″ stem. .375″ standard over 42″ stem.
- Connection : 1/2″ NPT. External Reset: Models with calibration feature are easy to calibrate by inserting 1/16″ Allen wrench into reset opening.
- Construction : 304 stainless steel external parts. Welded construction. Corrosion resistant to most chemicals.
- Hermetic seal : Per ASME B40.3 dustproof and leakproof.
- Dial : True Anti-Parallax dial, easy-to-read from any angle, minimizes reading errors. Anodized aluminum with large black numbers and graduations.
- Lens: Glass.
- Bimetal Coil : Helix coil is silicone coated on ranges below 500°F for vibration dampening and to maximize heat transfer and response time.
- Accuracy : ±1% full span per ASME B40.3 Grade A. When using maximum or minimum temperature indicator, accurate to within 11 /2% full span. Over Temperature
- Limits : Up to 250°F 100%; 250°F to 550°F, 50%; 550°F to 1000°F, continuous use up to 800°F, intermittent use over 800°F.
Loading...

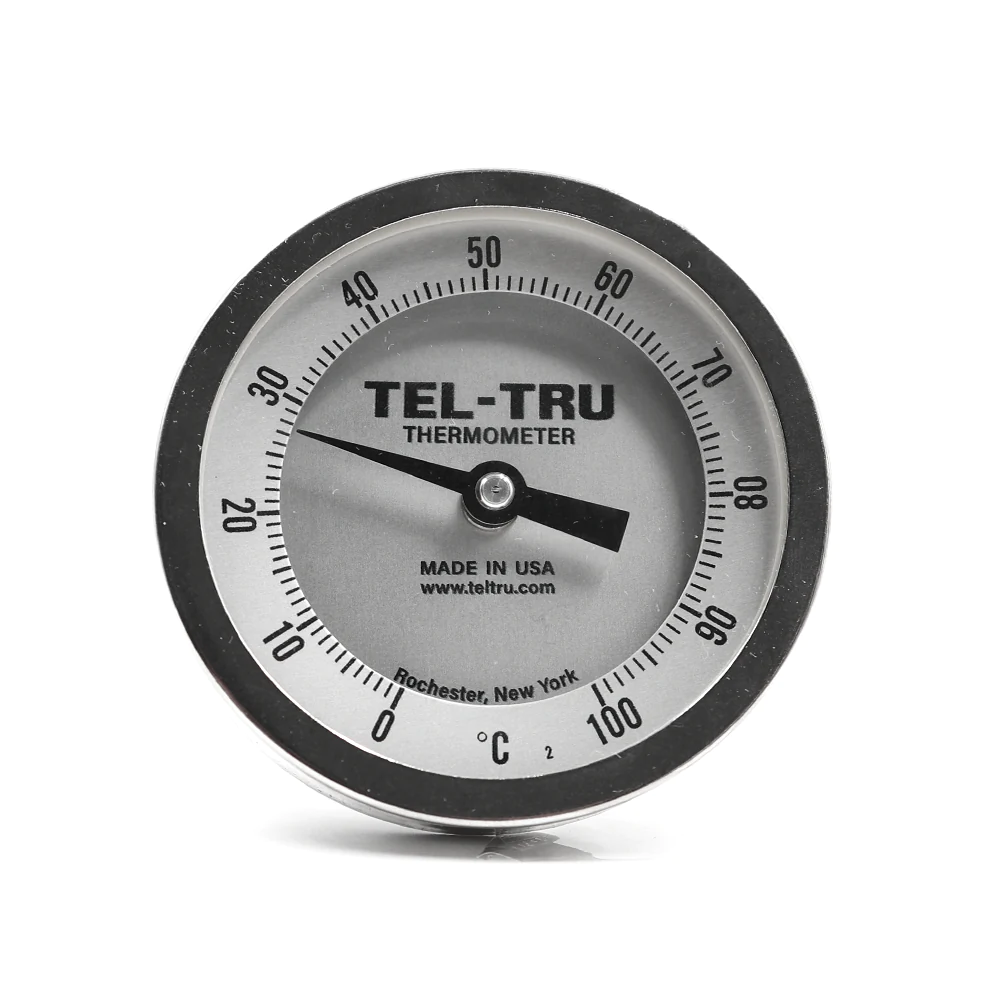

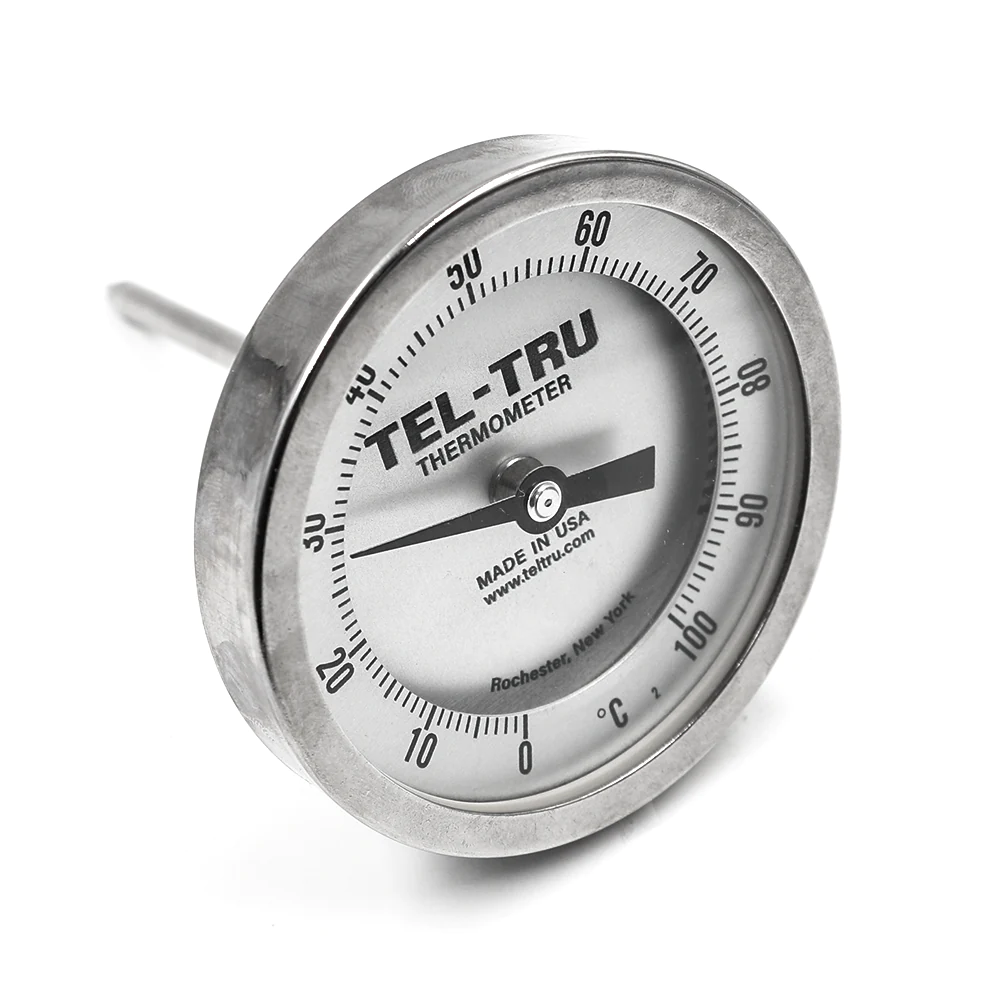

BIMETAL THERMOMETER “TEL-TRU” 3″ – BACK
CATEGORY: TEMPERATURE PRODUCTS
BIMETAL THERMOMETER “TEL-TRU”
MODEL : GT300R DIAL : 3″
CONNECTION : 1/2″ NPT -BACK
RANGE : ให้เลือกในไฟล์แคตตาล็อก
*หมายเหตุ : เช็คสต็อกสินค้ากับทางบริษัทก่อนสั่งซื้อสินค้า
