- Stem Lengths : 2.5″, 4″, 6″, 9″, 12″, 15″, 18″ and 24″ (available up to 120″).
- Stem Diameter : .250″ standard up to 42″ stem. .375″ standard over 42″ stem. Connection: 1/2″ NPT. External Reset : Easy to calibrate by inserting Allen wrench into reset opening.
- Construction : 304 stainless steel external parts. Welded construction. Corrosion resistant to most chemicals.
- Hermetic seal : Per ASME B40.3 dustproof and leakproof.
- Dial : True Anti-Parallax dial, easy-to-read from any angle, minimizes reading errors. Anodized aluminum with large black numbers and graduations.
- Lens : Glass.
- Bimetal Coil : Helix coil is silicone coated on ranges below 500°F for vibration dampening and to maximize heat transfer and response time.
- Accuracy : ±1% full span per ASME B40.3 Grade A. Over Temperature
- Limits : Up to 250°F 100%; 250°F to 550°F, 50%; 550°F to 1000°F, continuous use up to 800°F, intermittent use over 800°F
Loading...

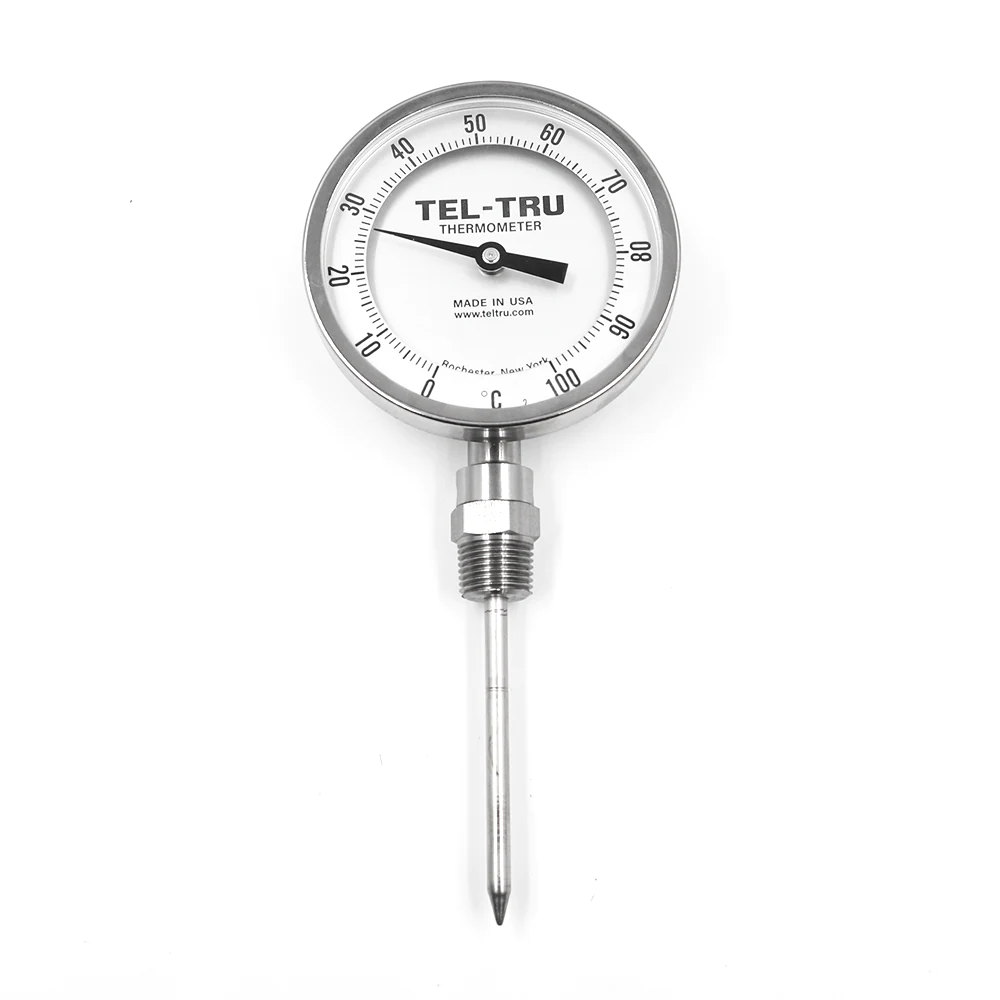

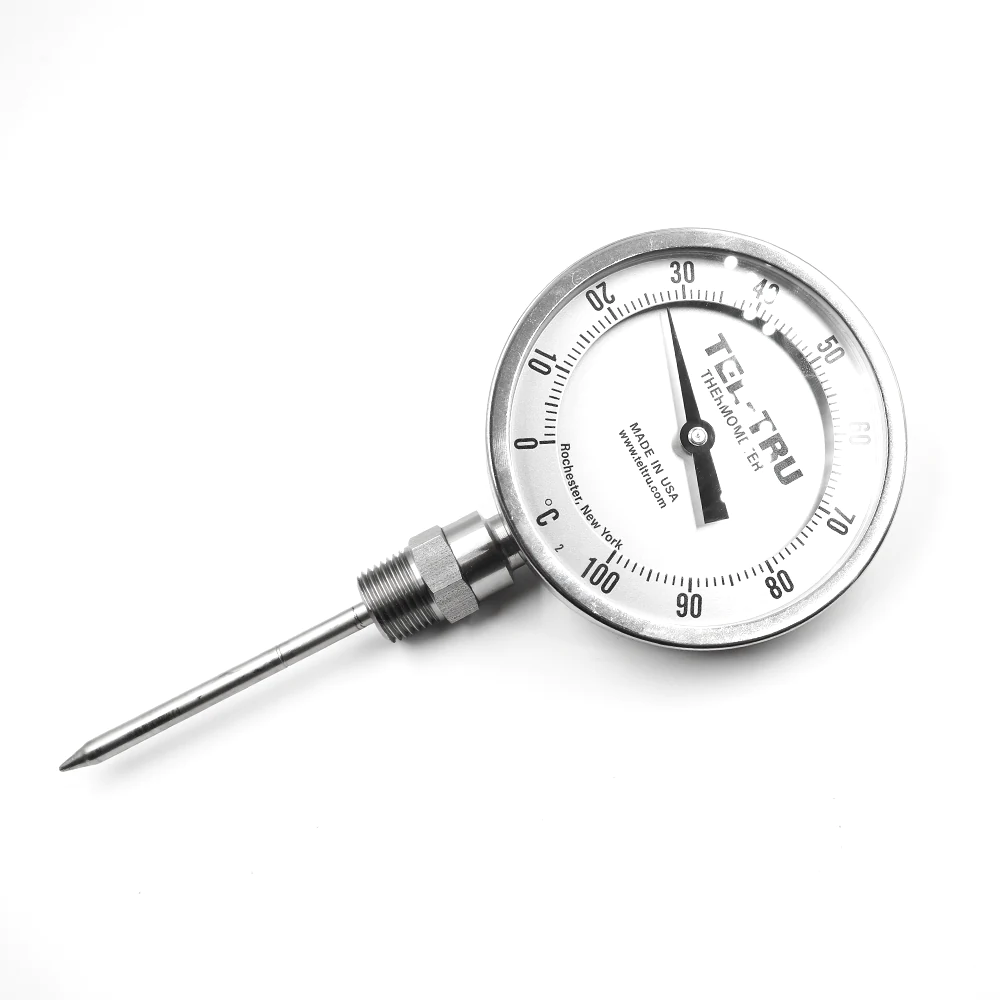

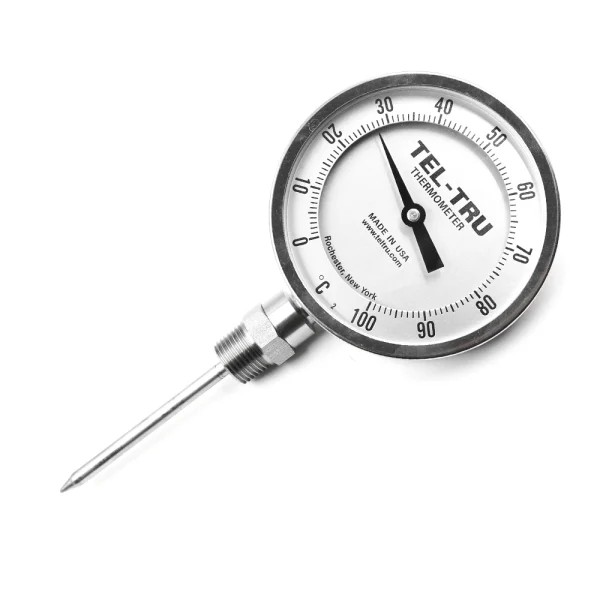

BIMETAL THERMOMETER “TEL-TRU” 4″ BOTTOM
CATEGORY: TEMPERATURE PRODUCTS
BIMETAL THERMOMETER “TEL-TRU”
MODEL : BC450R DIAL : 4″
CONNECTION : 1/2″ NPT -BOTTOM
RANGE : ให้เลือกในไฟล์แคตตาล็อก
*หมายเหตุ : เช็คสต็อกสินค้ากับทางบริษัทก่อนสั่งซื้อสินค้า
